Residential Electrical Starter Pack
$185.00 /per user
Description:
These outlet, switch, and light fixture families are the most comprehensive and consistent set of electrical families you will ever find for Revit! They are professionally designed and built to save you time. With these 10 outlets, 8 electrical devices, 2 highly customizable switches, 23 light fixtures, and 108 2D electrical families you will no longer need to spend your time building or searching for subpar electrical families. Our outlets, switches, and lights will save you time and headache on every project!
We also try to price them so that anyone can afford them. $185 for 151 models comes out to $1.23 per family. That’s less than the hourly cost you would pay yourself or a drafter to search for a less worthy free family!
Note:
Features:
This is the most comprehensive and consistent set of residential electrical families you will ever find for Revit! Here’s why:
- Download comes with 151 unique families and dozens of nested families
- That’s only $1.23 Per Family!
- 10 outlet families, 21 Different types
- Wall, ceiling, floor, & non-hosted versions
- Standard outlets
- Decora outlets
- 240 volts
- GFI
- Weatherproof
- USB
- Data
- TV
- Phone
- And more…
- 11 electrical device families
- Wall & ceiling hosted
- Speakers
- Smoke & carbon monoxide detectors
- Doorbell
- Electrical panel
- Security camera
- 2 highly customizable families, 7 types of switches
- Wall & non-hosted
- 1 to 6 gang
- Single
- 3-way
- 4-way
- Dimmable
- Motion
- Photo sensor (dusk/dawn)
- Weatherproof

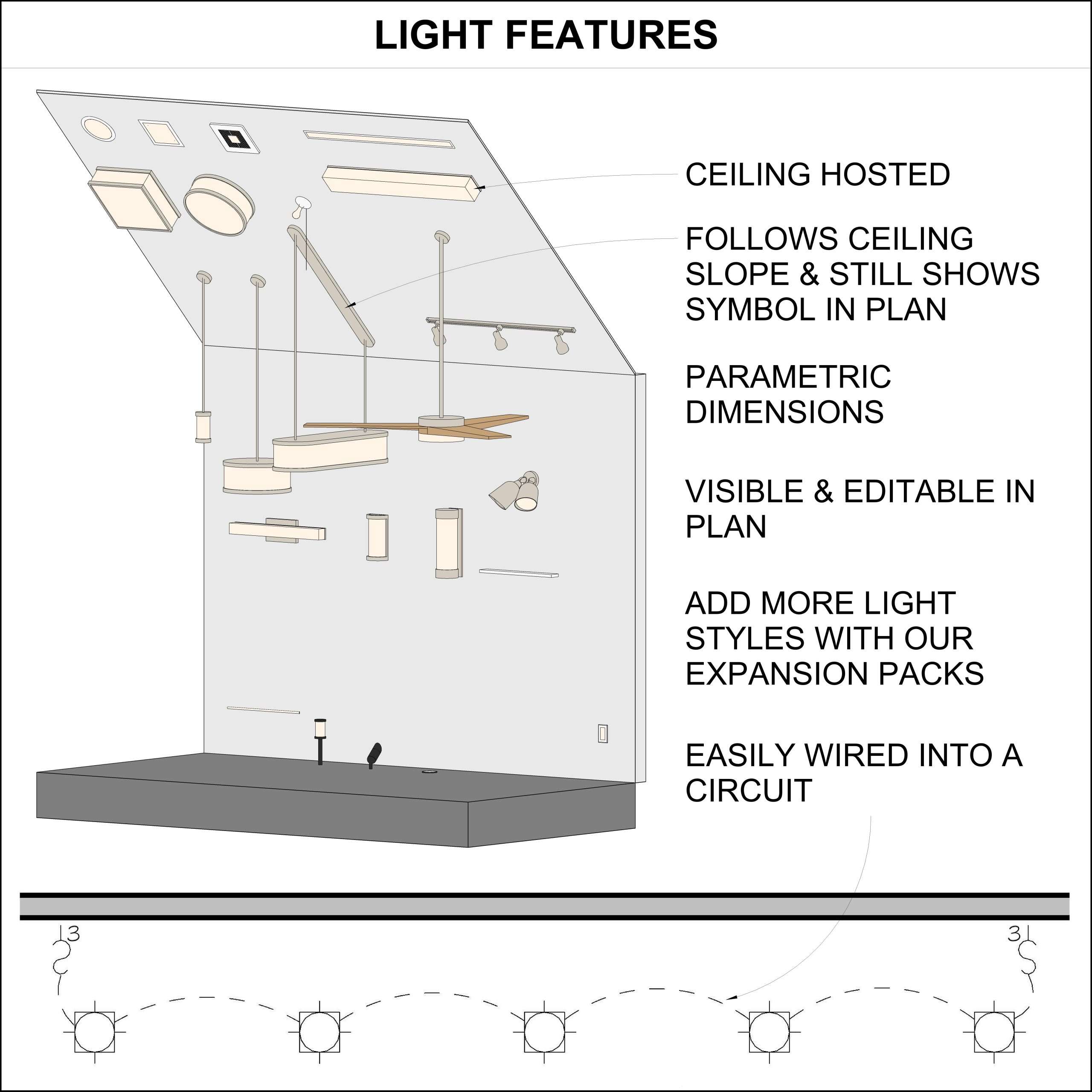

- 23 light fixture families
- Wall & ceiling hosted
- Symbols show on floor plan, even when ceiling is sloped
- Surface mounts
- Recessed
- Pendants
- Sconces
- Track
- Ceiling fan
- Exhaust fan
- And more…
- 108 2D electrical symbol families for rapid electrical plan creation
- Professionally Built & Look Correct in Elevation, Plan, and 3D (Except where Revit’s Railing Tool Doesn’t Cooperate)
- These Families Coordinate with Other Revit Families Sold By RevitFamily.Biz.
- Also included is an example Revit project file.
